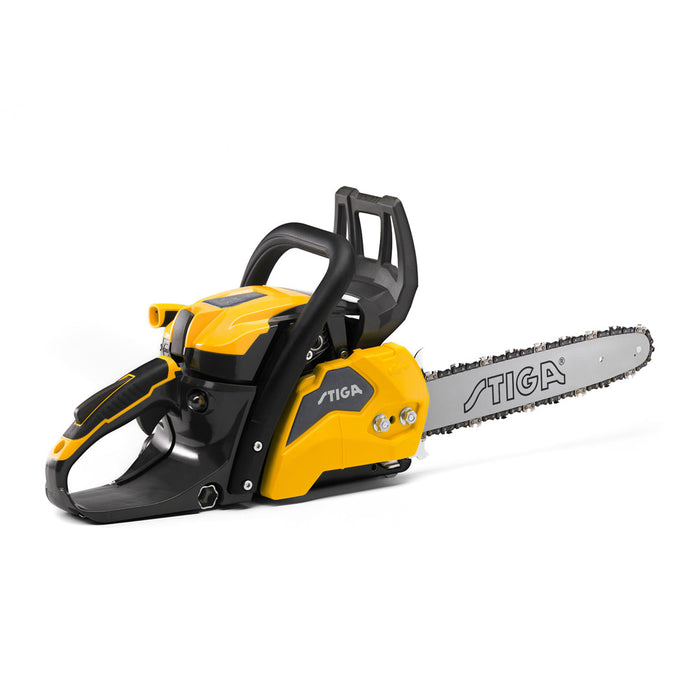

Stiga CS 540 (14")

SKU: CS 540

Product Number: 240381402/ST1

Original price £159.00
Original price £159.00 - Original price £159.00
Original price £159.00
Current price £149.00
£149.00 - £149.00
Current price £149.00

"The STIGA CS 540 chainsaw with 35 cm (14") bar is powered by a 38.5 cc (1.6 kW) engine, making it reliable and powerful yet lightweight. The magnesium engine cover ensures robustness, reliability and quick cooling. The oil pump is automatic and adjustable. Maintenance operations can be performed quickly and easily thanks to a number of features; such as the tool-less handle on the air filter cover without the need for additional tools, the tensioning wrench located under the rear handle and the fuel tank level monitoring window. The ergonomic soft-touch handle and spring system ensure reduced vibrations and greater comfort.

A 5-year manufacturer's warranty is included with this model (T&C's apply)."

Product Data

Power 1.6 kW
Power source Petrol 2-stroke
Displacement 38.5 cmcm³
Engine rotation speed 12000 rpm
Maximum engine speed 12000 rpm
Idling speed (+/- 100) 3100 rpm
Starter Recoil
Primer Yes
Choke Manual
Fuel tank capacity 0.49 l
Carburettor type Butterfly valve
Ignition coil type Digital
Air filter type Nylon net
Bar type Sprocket nose
Bar length 35 cm
Bar length (inches) 14 in
Chain type 3/8" .050" (91PX-53X)
Chain speed 22.8 m/s
Chain brake Manual and inertial
Chain oil tank capacity 0.26 l
Chain oil pump Automatic adjustable
Chain tensioning system Side screw tensioning
Guaranteed sound power level (LwA) - dB(A) 115
Measured sound power level dB(A) 111.5
Measured sound pressure level at operator ear dB(A) 99.6
Vibration level front handle (m/s2) 5.72
Vibration level rear handle (m/s2) 4.37
Pack weight 7.94 kg
Weight 7.295 kg
Product weight without bar and chain 5.64 kg
Product length 724 mm
Product width 283 mm
Product height 315 mm
