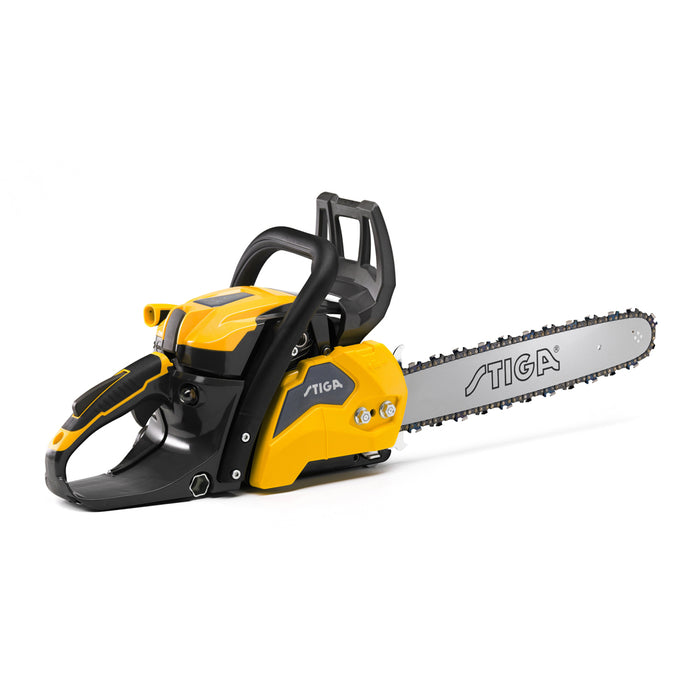

Stiga CS 545 (16")
SKU: CS 545 (16")
Product Number: 240421602/ST1
"The STIGA CS 545 (15")chainsaw with 40 cm guide bar is powered by a 42.4 cc (1.9 kW) petrol engine which delivers power and versatility. The CS 545 (15")features a 40 cm (16") bar and a magnesium engine cover which ensures robustness, lightness and quick cooling. The tensioning wrench is at your fingertips just under the rear handle, and the oil pump is automatic and adjustable. Maintenance operations can be performed quickly and easily thanks to features such as the handle for opening the air filter cover without the need for additional tools and the fuel tank level monitoring window. The ergonomic soft-touch handle and spring system ensure reduced vibrations and greater comfort. A 5-year manufacturer's warranty is included with this model (T&C's apply).
WARNING: This chainsaw is for use by trained tree service operators only. Use without proper training can result in severe injuries."
Product Data
| Power | 1.9 kW |
| Power source | Petrol 2-stroke |
| Displacement | 42.4 cmcm³ |
| Engine rotation speed | 12000 rpm |
| Maximum engine speed | 12000 rpm |
| Idling speed (+/- 100) | 3100 rpm |
| Starter | Recoil |
| Primer | Yes |
| Choke | Manual |
| Fuel tank capacity | 0.49 l |
| Carburettor type | Butterfly valve |
| Ignition coil type | Digital |
| Air filter type | Nylon net |
| Bar type | Sprocket nose |
| Bar length | 40 cm |
| Bar length (inches) | 16 in |
| Chain type | .325" .050" (95VPX066X) |
| Chain speed | 23.1 m/s |
| Chain brake | Manual and inertial |
| Chain oil tank capacity | 0.26 l |
| Chain oil pump | Automatic adjustable |
| Chain tensioning system | Side screw tensioning |
| Guaranteed sound power level (LwA) - dB(A) | 114 |
| Measured sound power level dB(A) | 110.3 |
| Measured sound pressure level at operator ear dB(A) | 98.7 |
| Vibration level front handle (m/s2) | 5.93 |
| Vibration level rear handle (m/s2) | 5.4 |
| Pack weight | 8.33 kg |
| Weight | 7.62 kg |
| Product weight without bar and chain | 5.87 kg |
| Product length | 775 mm |
| Product width | 283 mm |
| Product height | 315 mm |
