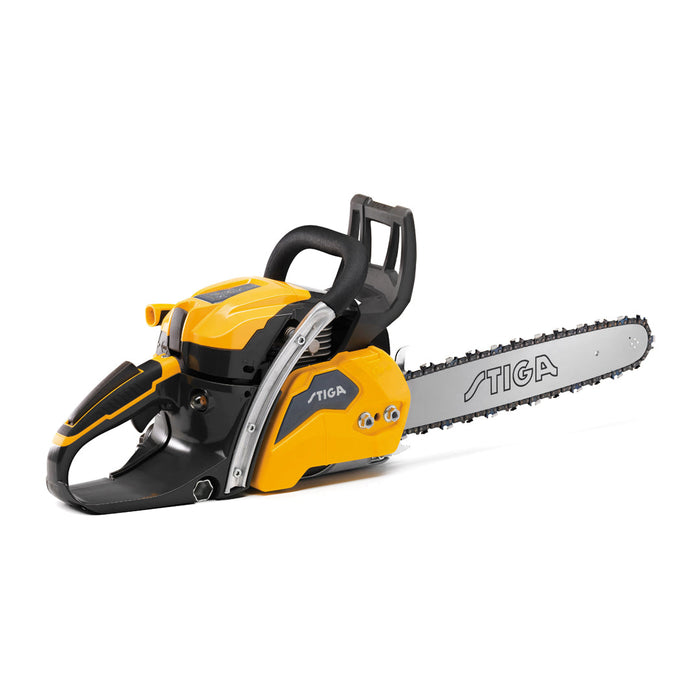

Stiga CS 750 (18")
SKU: CS 750
Product Number: 240461802/ST1
"Robust and powerful, providing high levels of efficiency and reliability. The STIGA CS 750 chainsaw is powered by a 46.5 cc (2.1 kW) petrol engine and has a 45 cm (18") guide bar. It also features a magnesium engine cover which ensures robustness, reliability and quick cooling. Maintenance operations can be performed quickly and easily thanks to a number of features; such as the tool-less handle on the air filter cover without the need for additional tools, the tensioning wrench located under the rear handle and the fuel tank level monitoring window. The ergonomic soft-touch handle and spring system ensure reduced vibrations and greater comfort.
A 5-year manufacturer's warranty is included with this model (T&C's apply). WARNING: This chainsaw is for use by trained tree service operators only. Use without proper training can result in severe injuries."
Product Data
| Power | 2 kW |
| Power source | Petrol 2-stroke |
| Displacement | 46.5 cmcm³ |
| Engine rotation speed | 12500 rpm |
| Maximum engine speed | 12500 rpm |
| Idling speed (+/- 100) | 3100 rpm |
| Starter | Recoil |
| Primer | Yes |
| Choke | Manual |
| Fuel tank capacity | 0.46 l |
| Carburettor type | Butterfly valve |
| Ignition coil type | Digital |
| Air filter type | Nylon net |
| Bar type | Sprocket nose |
| Bar length | 45 cm |
| Chain type | .325" .058" (21BPX-72X) |
| Chain speed | 23.1 m/s |
| Chain brake | Manual and inertial |
| Chain oil tank capacity | 0.26 l |
| Chain oil pump | Automatic adjustable |
| Chain tensioning system | Side screw tensioning |
| Guaranteed sound power level (LwA) - dB(A) | 115 |
| Measured sound power level dB(A) | 111.7 |
| Measured sound pressure level at operator ear dB(A) | 99.6 |
| Vibration level front handle (m/s2) | 4.85 |
| Vibration level rear handle (m/s2) | 4.86 |
| Pack weight | 9.14 kg |
| Weight | 8.02 kg |
| Product weight without bar and chain | 6.64 kg |
| Product length | 831 mm |
| Product width | 275 mm |
| Product height | 315 mm |
