Stiga CS 755 - 20")

SKU: CS 755

Product Number: 240521802/ST1

Original price £339.00
Original price £339.00 - Original price £339.00
Original price £339.00
Current price £299.00
£299.00 - £299.00
Current price £299.00

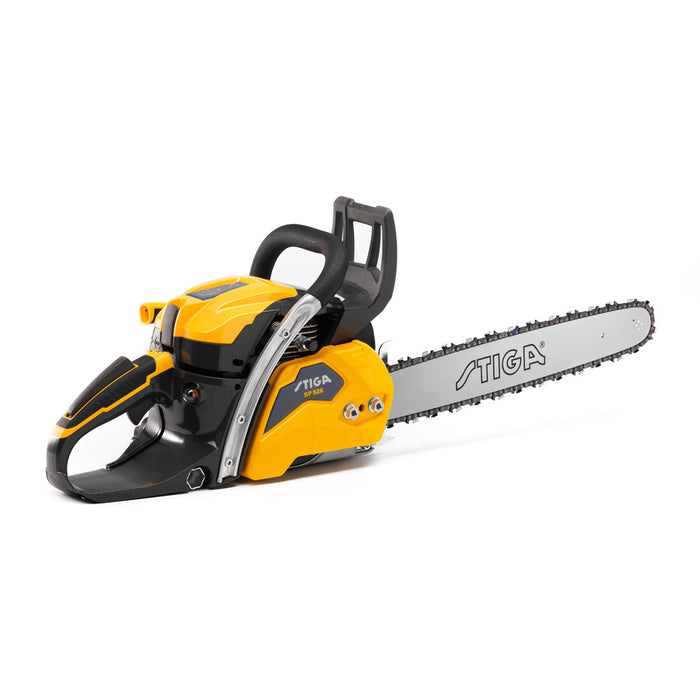

"The reliable STIGA CS 755 (20")petrol chainsaw has a good weight-power ratio, and a 50 cm (20") guide bar for tackling the most demanding of tasks making it suitable for both domestic and forestry work. The 52 cc (2.3 kW) petrol engine is teamed with a magnesium engine cover which ensures robustness, reliability and quick cooling. The decompression valve allows easy starting, while the oil pump is automatic and adjustable. Maintenance operations can be performed quickly and easily thanks to features such as the handle for opening the air filter cover without the need for additional tools, the tensioning wrench located under the rear handle and the fuel tank level monitoring window. The ergonomic soft-touch handle and spring system ensure reduced vibrations and greater comfort.

A 5-year manufacturer's warranty is included with this model (T&C's apply)
WARNING: This chainsaw is for use by trained tree service operators only. Use without proper training can result in severe injuries."

Product Data

Power 2.3 kW
Power source Petrol 2-stroke
Displacement 52 cmcm³
Engine rotation speed 12500 rpm
Maximum engine speed 12500 rpm
Idling speed (+/- 100) 3100 rpm
Starter Recoil
Primer Yes
Choke Manual
Fuel tank capacity 0.46 l
Carburettor type Butterfly valve
Ignition coil type Digital
Air filter type Nylon net
Bar type Sprocket nose
Bar length 50 cm
Bar length (inches) 20 in
Chain type .325" .058" (21BPX-78X)
Chain speed 23.1 m/s
Chain brake Manual and inertial
Chain oil tank capacity 0.26 l
Chain oil pump Automatic adjustable
Chain tensioning system Side screw tensioning
Guaranteed sound power level (LwA) - dB(A) 114
Measured sound power level dB(A) 110.8
Measured sound pressure level at operator ear dB(A) 100.6
Vibration level front handle (m/s2) 6.04
Vibration level rear handle (m/s2) 6.49
Pack weight 9.46 kg
Weight 8.12 kg
Product weight without bar and chain 6.86 kg
Product length 885 mm
Product width 285 mm
Product height 320 mm
