Atco LINER 22SH V
SKU: LINER 22SH V
Product Number: 294569037/AT1
Powerful Honda Engine for Easy Starts
The Liner 22SHV is powered by a Honda GCVx170 Autochoke OHV engine, offering smooth starts, efficient fuel economy, and the kind of high-quality simplicity that Honda engine fans know and love.
Tackle Any Terrain with Ease

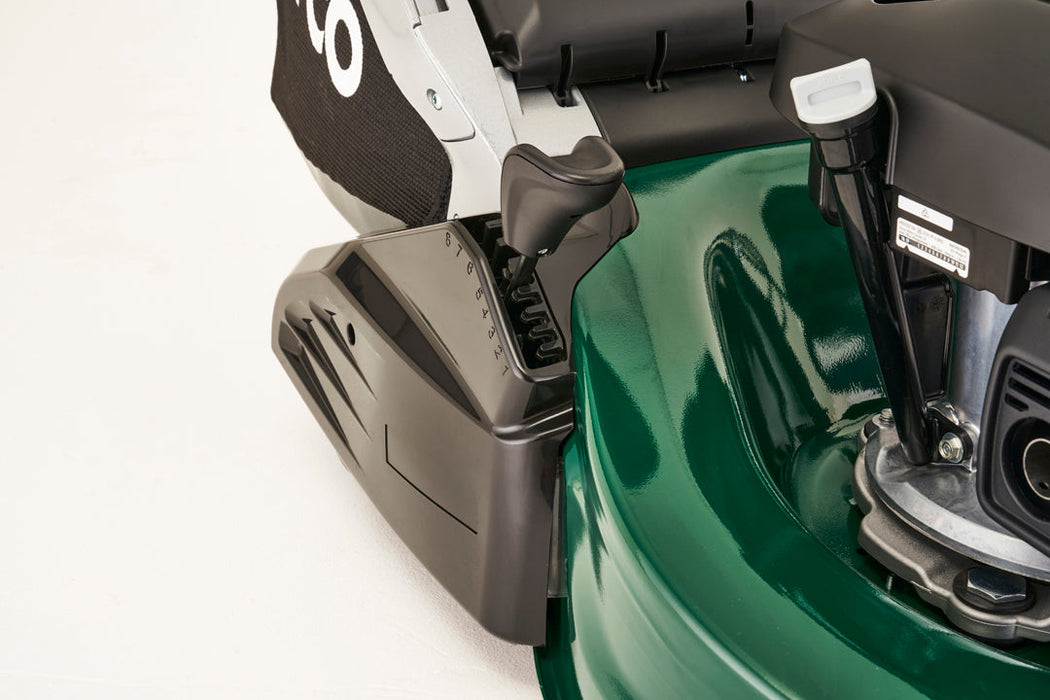

With powerful self-propulsion, the Liner 22SHV easily handles slopes, rough patches, and tussocky grass. Plus, the engine-RPM adjustment works seamlessly with the eight pre-set cutting heights, so you can adjust to varying grass conditions without a hitch.
Impressive Collection and Mulching Performance

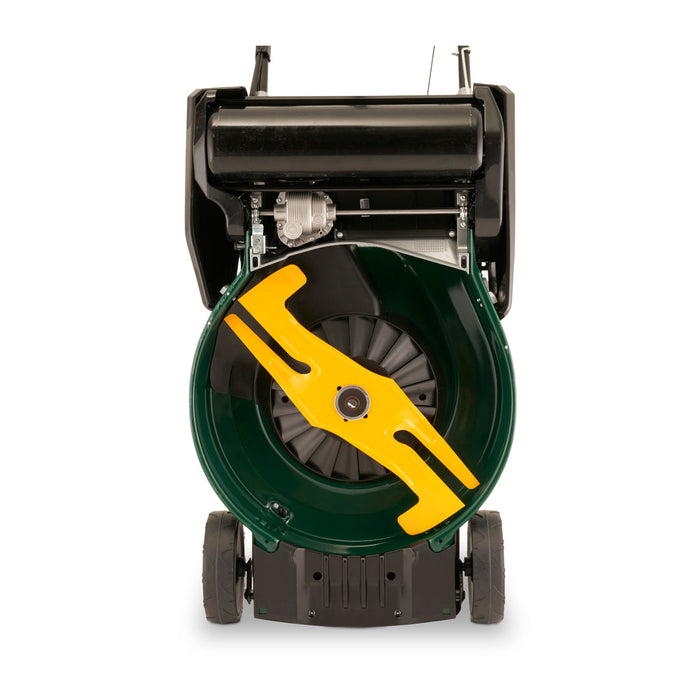

The four-edged Twinclip blade cuts and recuts the grass clippings, allowing the Liner 22SHV to pack up to 20% more grass into its extra-large 80-litre collector. This means fewer trips to empty and a super-neat lawn finish, previously only achievable with a cylinder mower.
Built to Last
With a hybrid galvanised steel/aluminium cutter deck, the Liner 22SHV is designed for strength and durability. And thanks to the stepless speed variator, managing varying terrains and grass lengths is a breeze!
Easy Maintenance
Keeping your mower clean is easy with the built-in washing link. Simply attach your hosepipe, run the water, spin the blades, and voilà – no more worrying about under-deck debris!
Perfect for Large Lawns
With a 53cm cutting width, front skid plate, and an extra-low cutting height (down to 13mm), the Liner 22SHV delivers an outstanding striped finish every time. It’s ideal for larger lawns and comes with a 5-year manufacturer’s warranty (T&Cs apply), so you can mow with confidence.
Ready for the best striped finish on your lawn? The Liner 22SHV has got you covered!
Product Data
| Power | 3.3 kW |
| Power source | Petrol |
| Engine Brand | Honda |
| Engine model | GCVx170 OHV Autochoke |
| Displacement | 167 cmcm³ |
| Engine rotation speed | 2900 rpm |
| RPM control | Fixed rpm |
| Starter | Recoil |
| Fuel tank capacity | 0.95 l |
| Engine Oil tank capacity | 0.4 l |
| Suggested working area | 1000 ㎡ |
| Cutting width | 53 cm |
| Deck material | Galvanized steel |
| Cutting height adjustment | Centralized |
| Cutting height positions | 8 positions |
| Cutting height range | 13 - 65 mm |
| Driving | Self-propelled with speed variator |
| Traction | Rear-roller drive |
| Speed forward | 3 to 4.9 Km/h |
| Guaranteed sound power level (LwA) - dB(A) | 98 |
| Measured sound power level dB(A) | 98 |
| Measured sound pressure level at operator ear dB(A) | 86 |
| Vibration level hand (m/s2) | 8 |
| Pack weight | 53.04 kg |
| Product length | 1680 mm |
| Product width | 560 mm |
| Product height | 1100 mm |
| Weight | 47 kg |
